  1. Mar 28, 2016 #41
    L-1011

    L-1011

    Was in Worcester, then Cheshire, now Glasgow.

  3. Apr 12, 2016 #42
    dave_gtt

    dave_gtt

    Just want to be 100%, I'm going to try my local bearing place for these in the next few days, the INA BK4520A are the correct bottom bearings, and the top ones pictured by L-1011.

    Has anyone changed the top ones??

    Thanks
    Dave.

  4. Apr 17, 2016 #43
    L-1011

    L-1011

    Mine had zero play or detectable wear at 132k. The pin also showed zero signs of fretting and was like new!


    RS 175 Lux

  5. Apr 17, 2016 #44
    dave_gtt

    dave_gtt

    Thanks, have ordered the lower one's, the top one's were €50+vat here in Ireland so I'll get my mechanic to check them before i lash out €130.

  6. Apr 17, 2016 #45
    L-1011

    L-1011

    Don't forget the top ones are two sets per side! That is one bearing on top of the other in series!!


    RS 175 Lux

  7. Apr 18, 2016 #46
    dave_gtt

    dave_gtt

    I didn't realise that, thanks. Let's hope they are ok!

  8. May 2, 2016 #47
    matt e

    matt e South East RSM Area Rep

    are the metal inserts available separately

  9. May 3, 2016 #48
    Chri5

    Chri5

    Do you mean the chunky threaded block thing that sits inside the bearing? In which case no :worried:

    I believe the small ring that taps into this block is though.

  10. May 3, 2016 #49
    L-1011

    L-1011

    The bottom section?

    That's would be easy to lathe up!!


    RS 175 Lux

  11. May 3, 2016 #50
    Chri5

    Chri5

    I've recently done one of my lower bearings, and replaced only the main needle part.
    It fitted perfectly into the hub, and upon reassembly it's exactly the same,no more no less.

    Also the small ring tapped nicely and securely into the round block so it's not as if it's slapping about in there.

    Why is there still looseness? Surely the block can't wear with the bearing because it's held elsewhere at the bottom.
    Any ideas?

  12. May 3, 2016 #51
    matt e

    matt e South East RSM Area Rep

    If you have a lathe that is

  13. May 3, 2016 #52
    Chri5

    Chri5

    Are you offering to machine one up to try?
    Ideally a new hub assembly is required so that a brand new one can be measured and duplicated before fitting.....who's feeling rich?

  14. May 3, 2016 #53
    matt e

    matt e South East RSM Area Rep

    we could all club in together

  15. May 3, 2016 #54
    L-1011

    L-1011

    Of course it's worn! The bearing has play in it so the bearing is going to grind away at it, applying radial loads all the time! Not to mention any corrosion that will have reduced the hard surface material.

    Did you measure it before putting it back in?




    RS 175 Lux

    Last edited: May 3, 2016
  16. May 3, 2016 #55
    L-1011

    L-1011

    Someone send me a spare turret and I'll see what I can do.

    Although I'm working in Aero, mechanical have lathes inc CNC although that wouldn't be needed.

    We know the OD should be 45mm. I can't remember the height but it's a little over the depth of the bearing. Was it a 24mm bolt (goes back and reads his own guide), but it's centred and easy to drill and thread form on a lathe.

    Just need the appropriate 50mm steel bar to start with. Operation would go something like this:

    - cut steel bar to +2.5mm length in power saw
    - lathe down OD to 45mm (2.5 mm cut) with appropriate finish (speed and pressure of cut).
    - face off both ends in lathe to give exact length.
    - drill correct size hole and depth into piece using lathe and stationary drill bits in tailstock
    - tap appropriate thread using tailstock and turning piece in chuck/lathe by hand!

    Job done. 5 minutes.


    RS 175 Lux

  17. May 4, 2016 #56
    Chri5

    Chri5

    Yeah I suppose it would wear away at it in that respect. The thing with my bearings isn't that they're even corroded or dry,they're just sloppy. Even with the new needle part in exactly the same way.
    I didn't even think to measure it to be honest, I just wanted it back together.

    If I can get it out and measure everything required and send you this info would you knock one up for me to try?
    I can't really send the turret and be without the car for long (I'm working in Italy and the post will take forever haha)

    I mean the OD is the most important bit as it would have taken all the wear. The height should be unaffected as its bolted down tight, and then the countersunk bit above where the thread starts must take the small inner ring tightly. Specs for this will be online, I'll check.

  18. May 4, 2016 #57
    L-1011

    L-1011

    Certainly although I'll warn you I have 42 days leave coming up so I'll be away from anything useful other than causing trouble on the forums.

    Getting the OD of the turret is your first port of call!

    I'm going to do another one soon so will measure it up then too! For future reference.

    Just to clarify, are you saying your actual bearing is sloppy when fitted around the turret?

    I tried mine before fitting into the upright and it was snug. You could invert the two pieces when fitted up and with grease the bearing wouldn't fall off easily.

    Are you sure you have the right bearing? Did you use INA ones?


    RS 175 Lux

  19. May 4, 2016 #58
    Chri5

    Chri5

    How soon is soon?

    As the bearing inside is 45mm does the turret need to be exactly 45mm or does it need an element of clearance? I'm not a bearing expert lol
    Come to think of it,when I fitted mine it wasn't perfectly snug,i just assumed it needed slight clearance for grease,expansion etc.
    There lies my problem!

    Yes i used quality INA bk4520 bearings also

  20. May 4, 2016 #59
    matt e

    matt e South East RSM Area Rep

    id be interested in a pair if you can get the measurements

    does any body know the size of the lower hub bolts that go in to the bearing?

  21. May 4, 2016 #60
    L-1011

    L-1011

  22. May 4, 2016 #61
    L-1011

    L-1011

    Any upcoming weekend where I've got it free. Although 14wk old son means the wife often has plans for me. Was meant to do it last weekend.


    RS 175 Lux

  23. May 6, 2016 #62
    matt e

    matt e South East RSM Area Rep

    How much do you think a pair of inserts would cost , if you were to make them?

  24. May 9, 2016 #63
    AustrianRS

    AustrianRS

    just1finn likes this.
  25. May 9, 2016 #64
    rTEM

    rTEM

    I would like to know the same, people do refer them but did any one actually fitted them? Thanks

    Sent from my SM-G920F using Tapatalk

  26. May 9, 2016 #65
    L-1011

    L-1011

    Yes yes yes.

    See the first posts! I fitted them and have written about them specifically in the link earlier in this thread!

    Having a proper read often saves repetition of the same thing over and over [emoji19]

    I am sniffly and grumpy by the way today!


    RS 175 Lux

  27. May 9, 2016 #66
    Chri5

    Chri5

    I've fitted exactly these ones and they fit the hub perfectly as they should.

    However, the turret/threaded insert bit on mine is worn so I cannot comment on the end result.

    If yours is fine then you should have no problems,they're a good quality bearing

  28. May 9, 2016 #67
    rTEM

    rTEM

    Thanks boys, i did follow this thread from the start but got confused because the bearing number has an A at the end of the par number. Very nice guide on turborenault by the way

    Sent from my SM-G920F using Tapatalk

  29. May 9, 2016 #68
    L-1011

    L-1011

    The "A" means the bearing is a cup bearing. No not Renault cup [emoji38], but a closed end not open. Which is what you need.

    Some points worth mentioning. The INA bearing is properly caged, the original Renault one isn't. It relies on the open end which is turned over to hold the needles in place. Once the needles wear they are free to loose location which is why the turret binds with the bearing and the steering gets sticky!

    The original has a flat cup where the INA one has a raised part in the centre. That means you have to locate it a bit further into the hub/upright so that the turret sits far enough in!

    It worked a treat for me.

    Here are some pics of the parts and the respective suppliers:





    I got the seals off eBay. I worked out these are the ones I needed based on the clearance and they were perfect!




    RS 175 Lux

    matt e likes this.
  30. May 9, 2016 #69
    rTEM

    rTEM

    Thanks for the detailed info mate, especially about the seal, will order the parts today, thank u

    Sent from my SM-G920F using Tapatalk

  31. May 9, 2016 #70
    matt e

    matt e South East RSM Area Rep

  32. May 9, 2016 #71
    L-1011

    L-1011

    matt e likes this.
  33. May 11, 2016 #72
    3hirty8ight

    3hirty8ight

    Apologies. Just going back to this... What was the verdict on needing the part INA IR40452. Is it necessary to replace? Or even part of the assembly at all?

  34. May 11, 2016 #73
    Gavin.

    Gavin. RSM Admin

    Can you post that in the guides here mate please rather than posting a link sending people to another forum. It will be just as useful here as it is there.

    Thanks

    Last edited: May 11, 2016
  35. May 11, 2016 #74
    L-1011

    L-1011

    Yep now in Guides under "belated swivel bearing replacement guide"

    Last edited: May 11, 2016
  36. May 26, 2016 #75
    Chri5

    Chri5

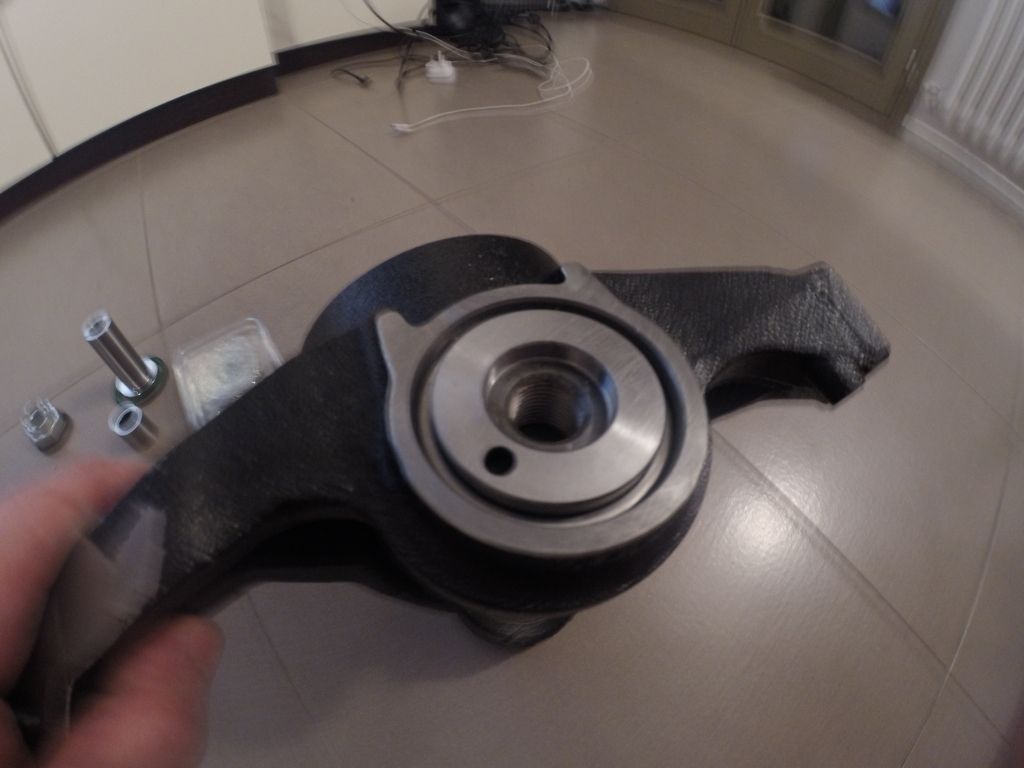

    Look what I have! a NEW turret to measure up before I install them.
    It is definitely my problem with the sloppy handling, this new one fits SO snugly in the bearing compared to original ones.
    [​IMG]

  37. May 27, 2016 #76
    rTEM

    rTEM

    Hi mate where is the turret from?

    Sent from my SM-G920F using Tapatalk

  38. May 27, 2016 #77
    Chri5

    Chri5

    A complete new hub assembly I'm afraid lol

  39. May 27, 2016 #78
    rTEM

    rTEM

    I thought so, but hopped for a miracle. U taking measurements of the turret?

    Sent from my SM-G920F using Tapatalk

  40. May 28, 2016 #79
    L-1011

    L-1011

    Right if you don't mind:

    -OD of turret.
    - height of turret
    - ID of step for collar at threaded end
    - depth of step at threaded end

    Use a micrometer for OD or vernier if needs be. Use vernier for height.

  41. Jun 20, 2016 #80
    HondaMini

    HondaMini
